Mini Ground Monitorr

Store / Fire Fighting Equipment / Ground Monitors
£0.00
Type
In stock
Product Details
Brand: Walter Frank

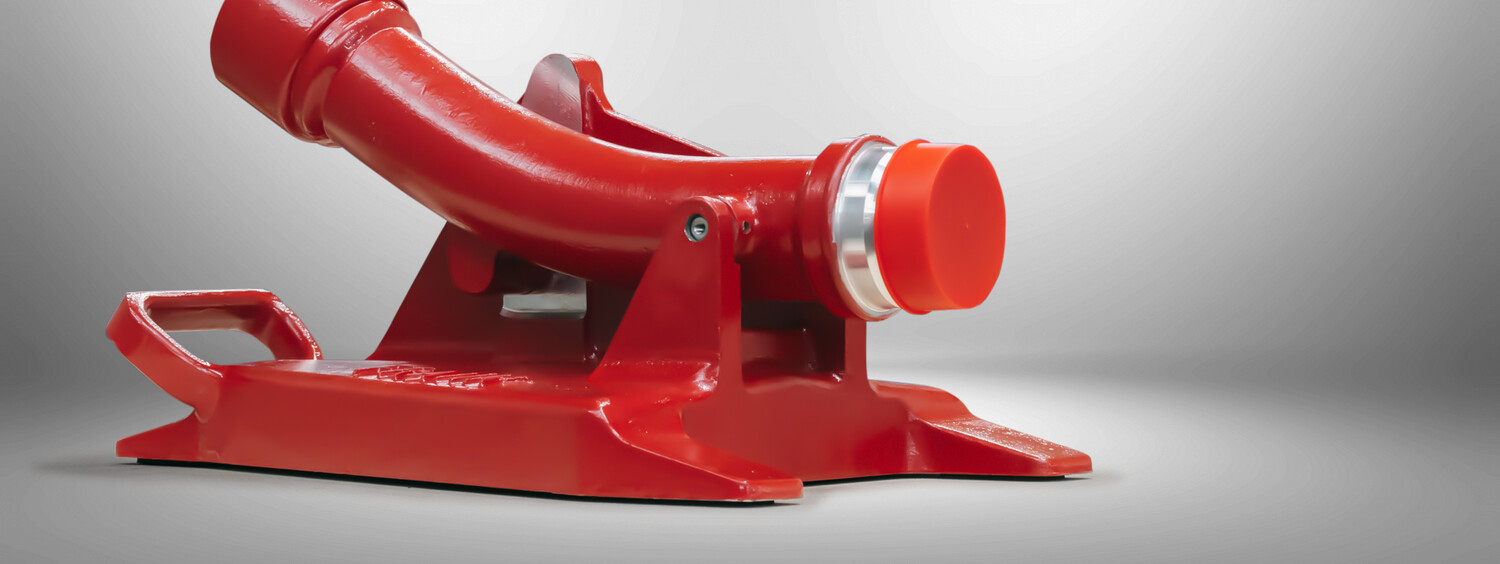

81.04 – Adjustable Angle Mini Monitor.

This monitor is supplied as a monitor only so that you can insert your own fire fighting branch, Or we can supply a "Monitor Fog Nozle".

The Monitor Fog Nozzle has an Adjustable head for; Spray , jet , plus variable flow rates: 100/1800/2400LPM. The advantages of the Monitor Nozzle over a normal branch:

  • Increased water flow rates upto 2400LPM. (average branch 475LPM)
  • Increased jet distance: 60-65 Mtr. (average branch 20-25mtr).
  • Increased Spay distance: 20-25 mtr. (average branch 5mtr)

Features:-

  • Light weight high strength aluminum alloy construction.
  • Simple design for rapid deployment
  • Low center of gravity for stability up to 15 bar.
  • Adjustable elevation
  • Optional anodized treatment for use with foam.
  • 2 instantaneous connections standard alternatives available.

Adjustable Angle Mini Monitor.

Inlet – 65mm Male Inst (BS336).
Outlet – 65mm Female Inst (BS336) Single Twist Release.

FIXED MIN MONITOR.

LIGHT ALLOY – Painted Red.

Optional ANODISED treatment for use with foam.

Maximum Working Pressure 16 Bar.
Maximum Test Pressure 24 Bar.
