IONIC Excel-X Raft. ( Open rear; Red, Green, Yellow).

The IONIC Excel-X Raft is currently used by many organisations in evacuations and rescues. The raft is designed to accommodate 10 persons, and the open back design allows wheelchair access if required. The large deck area is suited to operations where multiple casualties are being rescued. Like all other rafts it can be paddled towed or most commonly walked through flood water for the evacuation of casualties.

Manufactured in Orca® Hypalon the raft delivers unrivalled durability compared to PVC constructed models. It boasts an Orca® 6” Drop Thread Deck which inflates to 6psi providing a stable platform. The raft is constructed using 4 chambers for the sponsons and a separate chamber for the floor ensuring that if a puncture occurred the raft would remain buoyant.
The raft is fitted with an external lifeline, and six tethering points located around the sponsons with a further point on the underside of the floor for when towing is required.
The Raft is rated for inflation using a compressed air cylinder fitted with the IONIC Compact Inflation Kit which is recommended for rapid inflation and quick deployment.

Load Capacity
• Maximum number of persons 10
• Maximun payload 1200kg

Dimensions / Weight
• Overall Length 3.2m
• Overall Width 2.2m
• Deck Length 2.8m
• Deck Width 1.8m
• Packed Weight 40kg.

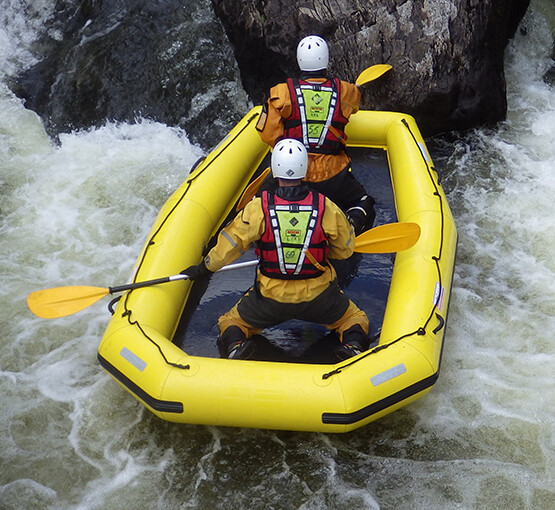

MFC Evacuation Raft , (Yellow)

Fully inflatable, the Evacuation Raft is lightweight and portable. It is easy to manoeuvre, and can be paddled or pulled by hand. The Evacuation Raft has a flat bottom, making it exceptionally stable and suitable for use in very shallow water from 50mm in depth. The Evacuation Raft is ideal in flood rescue situations.

The closed stern has been designed to give rescued casualties an enhanced feeling of security when on board the raft.

Once in the raft, individuals can sit on the floor surrounded by the inflatable tubes, providing a comfortable and reassuring rescue environment.

The Evacuation Raft is available in two standard sizes; RS8ER & RS10ER which will fit either 8 or 10 people. Evacuation Rafts have a large floor space and load capacity, making them the perfect choice for emergency evacuation and flood rescue situations. Larger sizes (up to 45 man) can be manufactured on request.

FEATURES

• Lightweight and easily portable
• Easy to manoeuvre
• Can be paddled or pulled by hand
• Exceptionally Stable
• Can be used in shallow water from 50mm in depth
• Closed stern to keep the deck dry and provides greater reassurance for casualties.
• Rapid inflation and deployment
• Easily Launched into the surf zone for sea rescue, with a raised bow for improved performance in waves
• Exceptionally tough and durable
• Minimal training, servicing and maintenance costs

USED FOR

• Crisis rescue
• Flood Rescue
• River Rescue
• Flooded coastal and urban areas
• Casualty Recovery
• Shallow Water rescue
